R & D Center

Key Technology

Technology Description

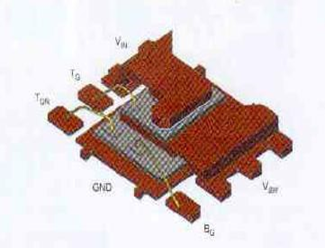

Clip Bonding

Clip-bonding technology replaces the standard wire-bond connection between die and lead by a solid copper bridge, soldered by solder paste, which offers unique package resistance, better thermal resistance, and ultra-fast switching performance due to the small package.

Ultra Sonic Welding

In order to weld copper, heat, and pressure are applied to the two pieces of metal that are being joined together. The heat melts the metal, which allows it to flow and be shaped into the desired joint. The pressure then holds the joint in place until it cools and solidifies.
In the field of power electronics increasingly high-performance modules using SiC is produced with the help of ultrasonic welding. Ultrasonic welding of the load and control connections to substrates offers full process and quality monitoring compared to conventional soldering. In reliability tests, ultrasonically welded power modules last up to ten times longer. ( JMJ’s Patent )

MPT(Micro Pattern Treatment) Technology

MPT.pdf Download
Products POD & Description
Press Fit

The press-fit technology utilizes press-fit pins to establish the module contacts to the printed circuit board. The basic principle is the bigger latitude of the press-in zone than of the PCB hole. This technology ensures easy and fast mounting of the module and PCB, reducing assembly time and cost by eliminating the solder process.

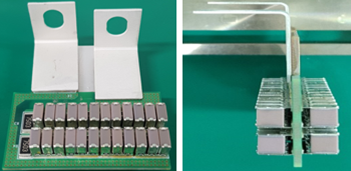

High Cap Stacked MLCC

Multilayer Ceramic Capacitor (MLCC) works as a 'dam' that temporarily charges and discharges electricity. It regulates the current's flow in a circuit and prevent electromagnetic interference between components.

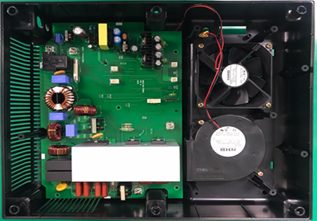

IH System 3.5KW

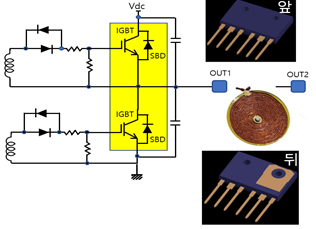

Coupled Power Package applied to IH system with WBG Power Device
