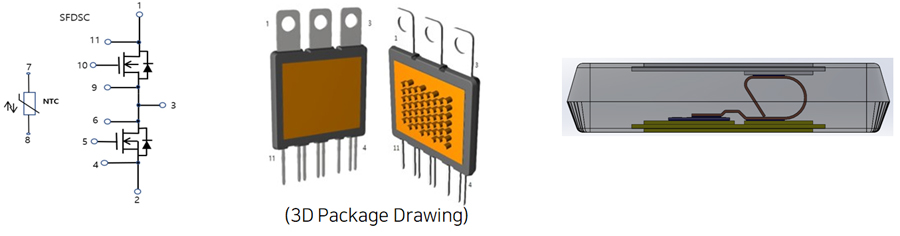

SFDSC (Safety Dual Side Cooled) Power Module - Generation 1 JW1R05M12SFDSC-G1 |
|---|
|
|
The innovative and small package is designed for Dual Sided Cooling with great thermal performance. The low stray inductance and increased blocking voltage support the design of systems with a very high efficiency. Using 1200V 14mΩ SiC MOSFET. The SiC MOSFET employs a Wolfspeed device. |
| SFDSC (Safety Dual Side Cooled) Power Module -Generation 1 JW1R05M12SFDSC-G1 |
|---|
|

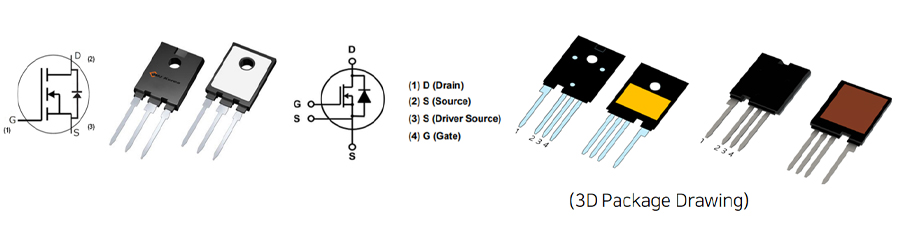

| Because both Kelvin source concept suitable for high-speed switching systems and SiC technology are applied, it is the best solution to improve the malfunction of the system caused by parasitic effects resulted from the gradually increased switching speed. Since dynamic losses can be reduced by more than 20% compared to standard TO-247 package, it has the advantage of increased system efficiency. it is also designed with high voltage Creepage distance suitable for High Voltage Solution as shown in the above figure. |
|

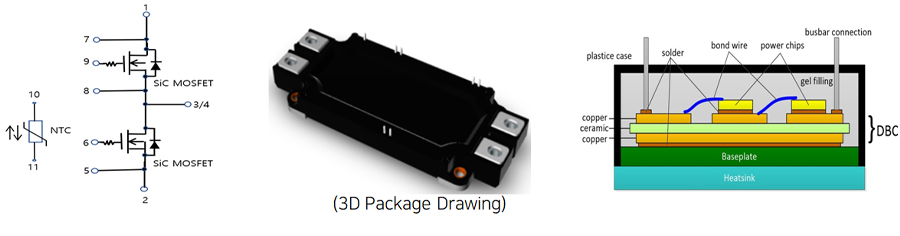

JEQ-1921 EconoDual Like Power Module Package S450A17P01 / S300A17P01 / S160A17P01 |
|---|
|
| complete SiC half bridge module composed of SiC MOSFET. It includes low package stray inductance of less than 12nH and insulation of 4kV. It is an optimal product for inverters and converters of industrial power sources, including evaluation devices such as outdoor power generation systems and charge / discharge testers. |
|

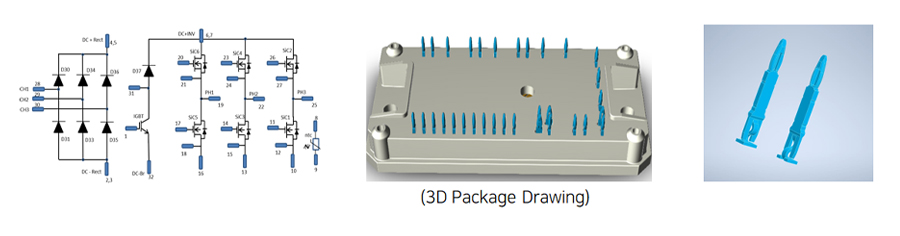

| The CIB is a product that integrates a 3-phase inverter circuit with 1200V SiC MOSFET, a diode bridge circuit of 1600V and a braking circuit into a single module, making it possible to create a compact design for the main circuit. We have prepared a product lineup to meet various requirements for the module terminal and printed circuit board connections, including the two types of connectivity such as solderable pin connector or solderless press fit pin. |
|

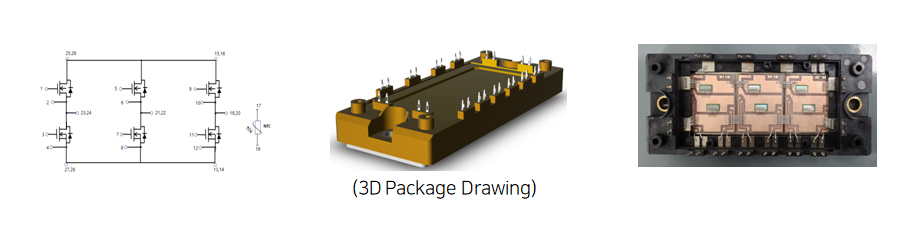

1200V 30mΩ six-PAK Power Module Package JG1R30M12SP |
|---|
|
|
Equipped with six-SiC, which usually have 1200V blocking voltage capability. Nearly all modules are equipped with an NTC alongside the power semiconductors. Power modules with a six-PAK topology are most frequently used as inverters in frequency converters for motors. The six-PAK is a product that integrates a 3-phase inverter circuit into a single module, making it possible to create a compact design for the main circuit. solderless terminals are available for connection to the module terminal and the printed circuit board. |
