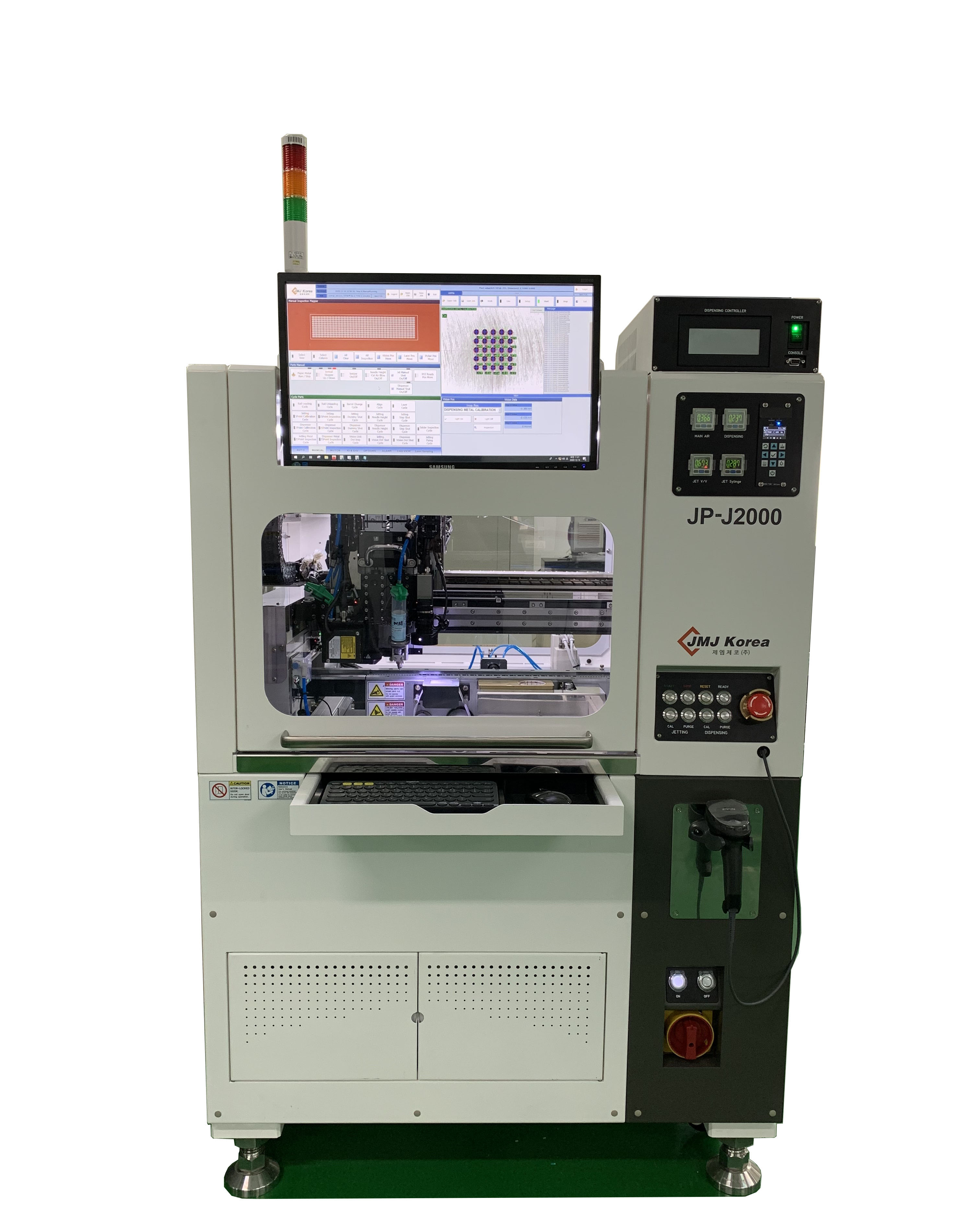

Jet Solder Printer(JP-J2000)

Jet Printer basic specification (JP-J2000)
Jet printing frequency 720,000 dph / 1,080,000 dph (option)
Reference board throughput** 33,000 cph / 40,500 cph*
Dot volume 5 to 20 nL
Dot diameter 0.33 to 0.52 mm
Media solder paste
surface mount adhesive
Board size 50×50 mm (min)
508×508 mm (max)
System options 1.high-speed
2.surface mount adhesive
3.inspect and repair
4.shared databases

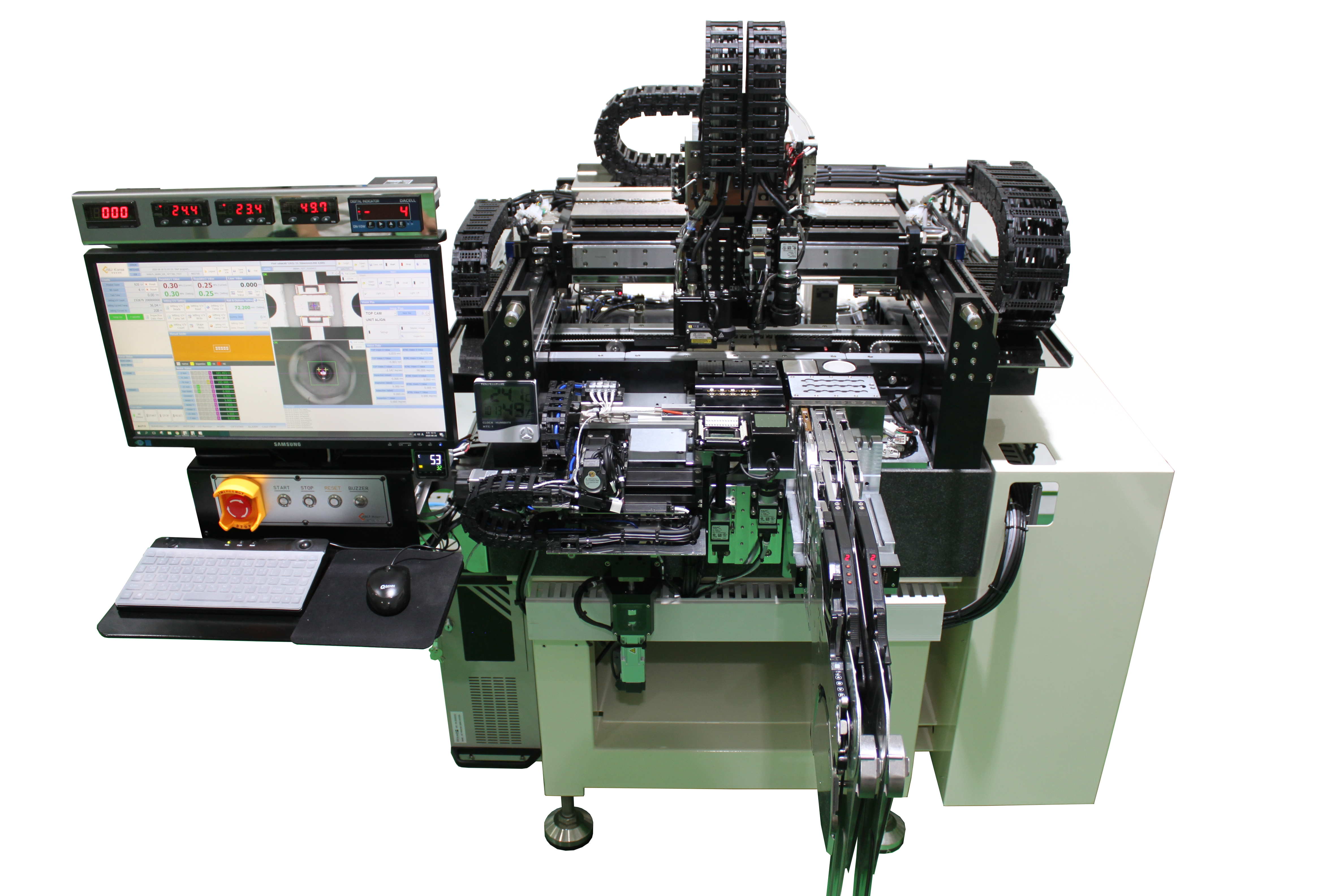

Hybrid placer_Lab (HJ-A1000)

Hybrid placer_Lab (HJ-A1000)
Model HJ-A1000
Size(W X D X H) 1000x1000x1500mm
Power Supply Three-phases AC220V / 20A
Air Pressure 0.7Mpa
Jetting Media Solder paste surface mount adhesive
Attach Device Die, Clip, SMT Device
Device Loading Waffle tray, SMT Feeder
Chip Size 0402, 0603,,1005...2012, etc
Under Heater Max Temp 600˚C
N2 Blower Max Temp 800˚C

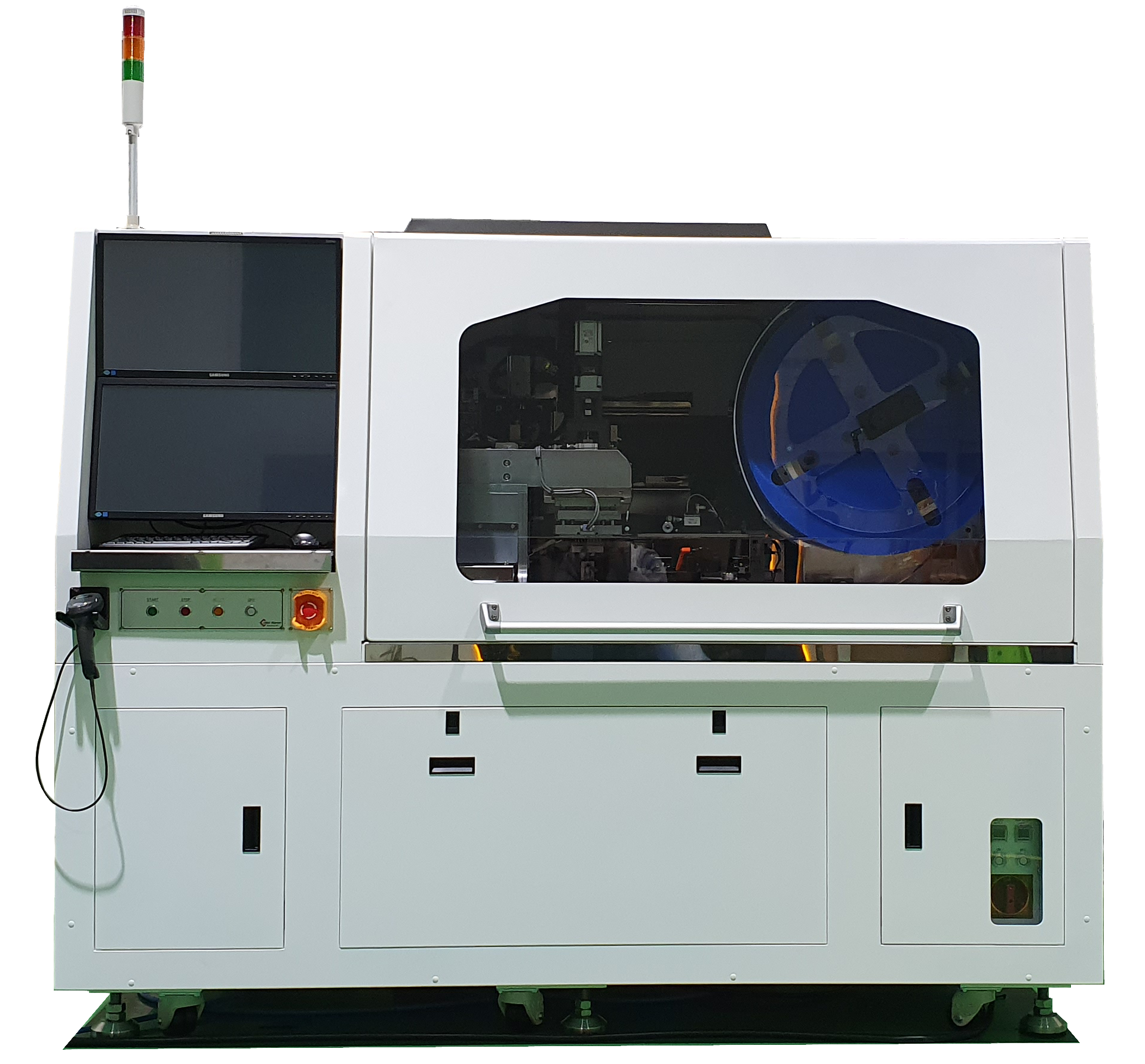

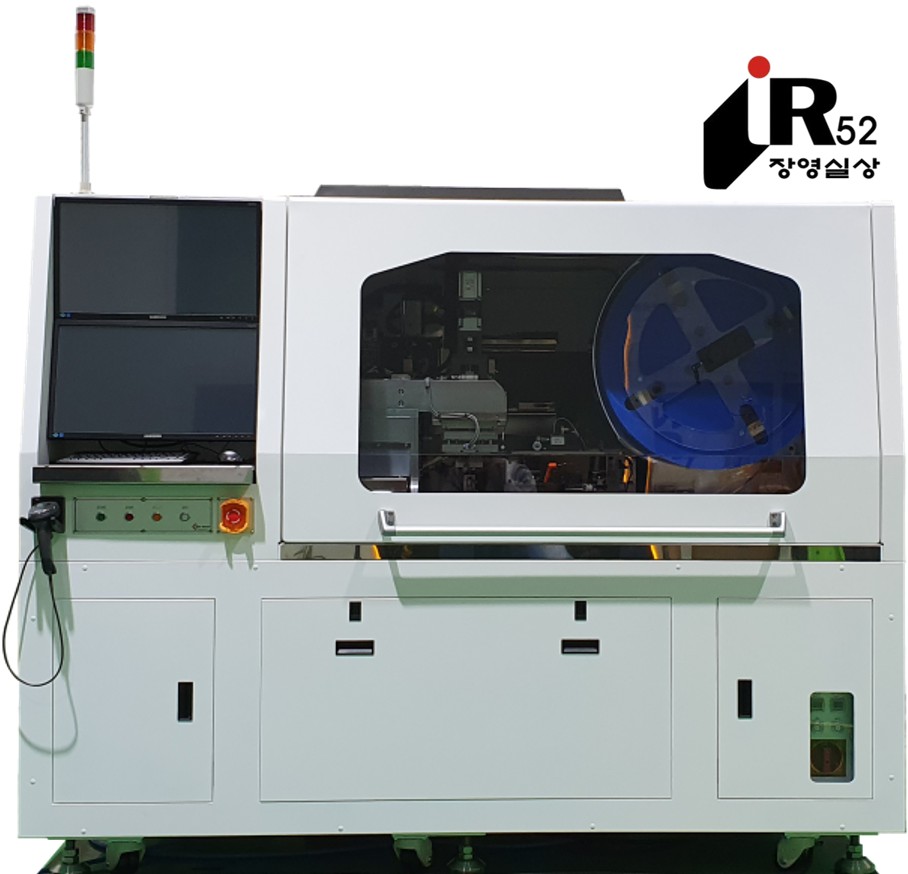

Multi Clip Mounter

MCM(Multi Clip Mounter)
Model MCM-C2000s
Size(W X D X H) 2100x1555x1870mm
Power Supply Three-phases AC220V / 30A
Air Pressure 0.5Mpa
Bonding Accuracy ±50um
UPH 30~45K (unit)
Clip Cutting Tool Option
MES Communication Option

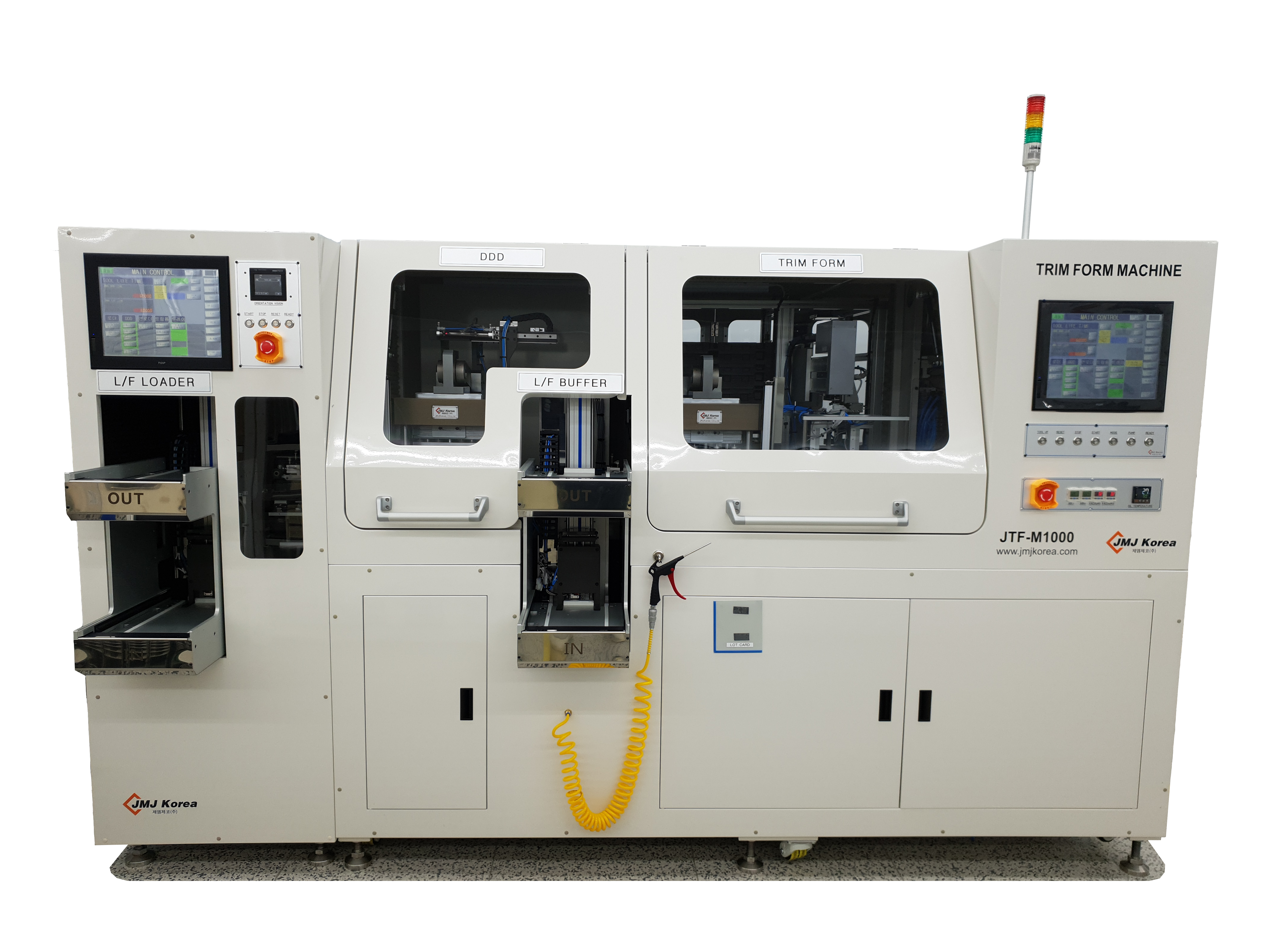

Auto Trim / Form

Auto Trim / Form
Model JTF-M1000
Size(W X D X H) 3100x1600x1800mm
Power Supply Three-phases AC380V / 30A
Air Pressure 3 bar (minimum)
Double Press Type DDD & Trim form
Cycle Time 5sec
UPH Case by Case
Orientation Vision Input Prevent mistake
User can choice unloading Magazine to Magazine
Magazine to Tray
Tray type Autoload Tray System
MES Communication Option

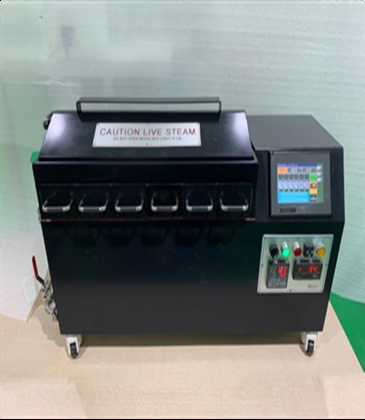

Steam Ager

Steam Ager
Model JKL-ST001
Size(W X D X H) 1145x405x627mm
Power Supply Single-phases AC220V / 30A
Water Input Auto Electric water Valve
Steam Zone Box 6 box
Heater 4KW x 1ea
Water Capacity 15ℓ
Temp Control Digital Set Readout PID Control
Temp & Timer Setting 7" Touch Monitor

Water Deflesh

Water Deflesh
Model JKW-WD001
Size(W X D X H) 2800x1350x1800mm
Power Supply Three-phases AC380V / 30A
Air Pressure 3 bar (minimum)
Water Pump 1 Ton (Max)
Water Working Pressure 500 Kg
Loading & unloading Magazine to Magazine
Control Setting 7" Touch Monitor

Auto loader & Unloader

Auto loader & Unloader
Model JKL-LD001
Size(W X D X H) 1300x480x1650mm
Power Supply Three-phases AC220V / 20A
Air Pressure 3 bar (minimum)
Loading & unloading Magazine to Magazine
Control Setting 7" Touch Monitor
Communication Type SMEMA Communication

Auto loader Bending Press

Auto loader Bending Press
Model JKL-AP001
Size(W X D X H) 1400x700x1500mm
Power Supply Three-phases AC220V / 30A
Air Pressure 3 bar (minimum)
Loading & unloading Bundle to Bundle
Control Setting 7" Touch Monitor
Communication Type SMEMA Communication

Other Equipment Made

Auto Bending Press

Auto Unloader

Cure Oven

DBC Welder
